Galvanized Street Lub teeb ncej

Installation qhov siab: 4-12m
Mast sib dhos: Tsis muaj vuam ntawm qhov chaw / plam kev sib koom ua ke
Vuam: Vuam tau lees paub nrog tus qauv vuam thoob ntiaj teb ntawm CWB
Yam tsawg kawg yield zog: 355MPA
Yam tsawg kawg nkaus tensile zog: 490MPA
Max qhov kawg tensile zog: 620MPA
Tsim tus ncej: tiv thaiv av qeeg ntawm qib 8
Warranty: 20 xyoo ntxiv
Lub sij hawm xa khoom: 3-7 hnub
Customized service: Muaj

Xa kev nug Tsham tam sim no

Kev xa khoom sai
Quality Assurance
24/7 Kev Pabcuam Cov Neeg Siv Khoom

Khoom Taw qhia

Khoom Description

Yahua teeb pom kev zoo muaj ntau tshaj 20 xyoo ntawm kev tsim thiab tsim txoj kev teeb pom kev zoo ncej,hnub ci txoj kev teeb, thiab sab nraum zoov teeb ncej. Cov noGalvanized Street Light Ncejyog non-corrosive, khaws cia dawb, thiab kav ntev. Nws muaj qhov siab yeem ntawm 4-12 meters thiab tuaj yeem yuav ntawm kev thov.

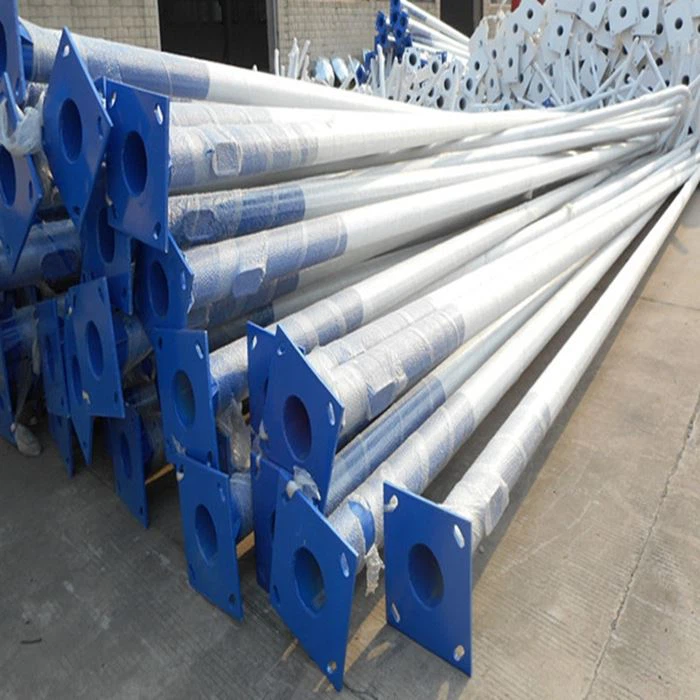

Galvanized txoj kev teeb ncej

Daim ntawv thov: Kev loj, txoj kev, txoj kev, square, chaw ntau pob, thiab lwm yam.

Ntau txoj kev kho saum npoo

Ntau yam hmoov txheej xim

ASTM A595 Qib A ncej ncej

Tshem tau ncej saum

High-temperature hot dip galvanizing technology.jpg

High-temperature kub dip galvanizing tshuab

Kub-dip galvanizing yog txhawm rau txhawm rau txhawm rau xeb tshem tawm cov hlau hauv cov tshuaj zinc molten ntawm li 500 degrees Celsius kom cov nplaim ntawm cov hlau txuas nrog zinc txheej, thiaj li ua tiav lub hom phiaj ntawm kev tiv thaiv corrosion.

Kub-dip galvanized ntxiv hmoov txheej

Cov hmoov txheej yog txau rau saum npoo ntawm lub workpiece nrog cov khoom siv hmoov txau. Nyob rau hauv qhov kev txiav txim ntawm hluav taws xob zoo li qub, cov hmoov yuav sib npaug adsorbed rau ntawm qhov chaw ntawm lub workpiece los tsim cov hmoov txheej.

Cov neeg tsim khoom lag luam

Peb muaj ib pab neeg tsim qauv tsim thiab engineering, uas tuaj yeem tsim tshwj xeeb raws li koj xav tau. Koj tuaj yeem tiv tauj peb txhua lub sijhawm.

scene graph.jpg

Technical Specifications

Khoom npe	Galvanized txoj kev teeb ncej
Phab ntsa thickness	4mm -4}.5 hli
Khoom siv	Q345B/A572, Q235B/A36, Q460
Kev kho saum npoo	Kub dip galvanized, hmoov txheej
Daim ntawv pov thawj	ISO 9001 Cov
Hauv av-mounted	faus
Cua ceev	Tawm tsam cua siab ntawm 100 Km / h rau 180 Km / h
Brackets	Ib leeg lossis ob lub voj voos yog nyob rau hauv cov duab thiab qhov ntev raws li cov neeg siv khoom xav tau rau 5m / 6m / 7m / 8m / 9m / 10m / 12m galvanized txoj kev teeb pom kev zoo
Mast qauv	8 / 12 / 16 / 20 / 8 / 12 / 16 / 20 / round conical
Kev sib koom ntawm cov ncej	Ntxig hom, sab hauv flange hom, ntsej muag-rau-ntsej muag sib koom hom
Cov txheej txheem ntau lawm	Rew khoom kuaj → Txiav → Molding los yog dabtsi yog khoov → Welidng (ntev) → Dimension xyuas → Flange vuam → Qhov drilling → Calibration → Deburr → Galvanization los yog hmoov txheej, pleev xim → Recalibration → Xov → Pob

Kev Paub Txog Kev Lag Luam

Yuav ua li cas xaiv lub teeb ncej rau qhov sib txawv installation qhov siab?

Txoj kev suav yooj yim tshaj plaws yog los txiav txim siab qhov siab ntawm lub teeb ncej raws li txoj kev teeb tsa.

Qhov piv ntawm ib sab teeb pom kev zoo yog 1: 1. Piv txwv li, yog txoj kev dav 6 meters, yuav tsum tau muab ib tug 6-meter-siab lub teeb ncej.
Qhov piv ntawm ob sab symmetrical teeb yog 1:0.5. Piv txwv li, yog tias txoj kev dav yog 10 meters, yuav tsum tau nruab ib lub teeb ncej nrog qhov siab ntawm 5 meters.
Qhov piv ntawm zigzag teeb ntawm ob sab yog 1:0.7. Piv txwv li, yog tias txoj kev dav yog 10 meters, yuav tsum tau nruab ib lub teeb ncej nrog qhov siab ntawm 7 meters.

Cov xwm txheej sib txawv yuav muaj qhov sib txawv me ntsis. Yog tias koj tsis paub tias lub teeb ncej siab npaum li cas yuav tsum tau teeb tsa thaum koj yuav nws, koj tuaj yeem tiv tauj peb thiab peb yuav muab tswv yim rau koj.

Qhov project show:

Galvanized Street Light Ncej yog dav siv thoob plaws ntiaj teb. Txij li thaum tsim lub tuam txhab nyob rau hauv 2001, peb muaj ntau tshaj 80 lub teeb ncej project, thiab peb cov neeg muas zaub npog Asia, Europe, Africa, thiab lwm yam cheeb tsam.

Project show 1
