Kev lag luam LED Txoj Kev Teeb
Luminous Ua Haujlwm: 130lm / W
CCT: 2800-3000K; 3000-3200K; 4000-4500K; 5000-5500K; 6000-6500K
LED: San'an / Lumileds 3030
CRI: Ntau dua lossis sib npaug rau 80Ra
PF：>0.97
Input Voltage: AC100-277V (ib txwm); AC100-305V (Meanwell)
THD: THD<15%
- Kev xa khoom sai
- Quality Assurance
- 24/7 Kev Pabcuam Cov Neeg Siv Khoom
Khoom Taw qhia
Nyob rau hauv lub ntiaj teb no zoo -paub LED Street Light manufacturers thiab cov neeg cog lus nyob rau hauv Tuam Tshoj, YAHUA yog ib tug txhim khu kev qha tsum uas muaj ib tug loj coj mus muag teeb txoj kev project. Nrog cov khoom muag, koj tuaj yeem lag luam wholesale LED Txoj Kev Teeb ntawm kev tsim zoo ntawm tus nqi qis thiab tus nqi qis los ntawm peb lub hoobkas.
Product Overview

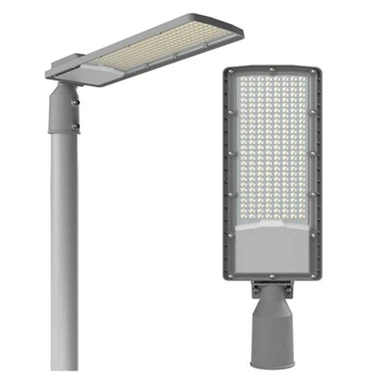

Kev lag luam LED Txoj Kev Teeb
Qhov nocoj mus muag LED txoj kev teebnrog AC100-277V dav voltage, IP66 waterproof, IK08 cuam tshuam tsis kam, 6KV surge tiv thaiv thiab -30℃~ 60℃dav ua hauj lwm kub, zoo kawg nkaus haum txoj kev hauv nroog nyob rau sab hnub tuaj Asia, Middle East, Africa, South America, North America, Europe thiab Australia. Nws hloov mus rau qhov tsis ruaj tsis khov hauv cheeb tsam, qhov kub thiab txias, av noo, nag thiab plua plav ib puag ncig, ua tau raws li tsoomfwv thoob ntiaj teb thiab hauv nroog txoj kev teeb pom kev zoo.
Tsis muaj
|
Hwj chim |
100W |
150W |
200W |
240W |
300W |
|
Lumen |
13 000 lm |
19 500 lm |
26 000 lm |
31 200 lm |
39 000 lm |
|
Luminous Efficiency |
130 lm/w |
||||
|
CCT |
2800-3000K; 3000-3200K; 4000-4500K; 5000-5500K; 6000-6500K |
||||
|
LED |
San'an/Lumileds 3030 |
||||
|
CRI |
Ntau dua lossis sib npaug rau 80Ra |
||||
|
PF |
>0.97 |
||||
|
Input voltage |
AC100-277V (ib txwm); AC100-305V (Meanwell) |
||||
|
THD |
THD<15% |
||||
|
Qhov hnyav (kg) |
3.4 |
4.0 |
4.4 |
4.6 |
6.4 |
|
Qhov ntau thiab tsawg (mm) |
519*210*70 |
565*250*70 |
589*280*75 |
589*280*75 |
674*300*80 |
|
Beam Angle |
T3/T4 |
||||
|
Installation Qhov (mm) |
Ø65 |
||||
|
Ua haujlwm Temp |
-30 ~ 60 degree |
||||
|
LED Junction Temp |
Tsawg dua lossis sib npaug li 80 degree |
||||
|
Cov av noo |
15% ~ 90% RH, tsis muaj condensing |
||||
|
Ua kom tiav |
Txau nrog cov hmoov tshwj xeeb sab nraum zoov |
||||
|
Lub neej ncua |
Ntau dua lossis sib npaug rau 50,000 Hrs (LM70 @ 35 degree) |
||||
|
Kev tiv thaiv -surge ntsuam xyuas |
6 kvu |
||||
|
IP Qib |
IP66 |
||||
|
IK Qib |
ib 08 |
||||
|
Khoom siv |
|||||
|
Fais fab hlau |
Khoom siv lub cev |
Electronic kev nyab xeeb qib |
|||
|
Roj hmab cable (3 * 1mm²) L=0.5m |
Aluminium vaj tse + iav + PC |
Chav I |
|||
Cov ntawv pov thawj
Hoobkas saib xyuas
tiv tauj peb
📩 Xa koj qhov kev nug rau pebrau MOQ thiab lwm yam ntsiab lus ntawm qhov nocoj mus muag LED txoj kev teeb hauv 24 teev.
Cim npe nrov: coj mus muag txoj kev teeb Tuam Tshoj, hoobkas, manufacturers, tsum, wholesale, tsim, neeg cog lus, nqi, nqe, project, kev muag khoom
